Place of Origin: | Suzhou, China |
Brand Name: | AIWEN |
Certification: | ISO9001:2008 |
Model Number: | 2J23A |
Minimum Order Quantity: | 100kg |
---|---|
Price: | Available per request |
Packaging Details: | Wooden crate |
Delivery Time: | 30 days |
Payment Terms: | T/T |
Supply Ability: | 10000 kg per month |
Type: | Soft | Composite: | Ferrite Magnet |
---|---|---|---|
Shape: | Bar | Application: | Industrial Magnet |
Fe-Co-Mo Magnetic Hysteresis Alloy supplier from China
FeCoMo hysteresis alloys have excellent hysteresis properties in both medium and high magnetic fields.
Application of Fe-Co-Mo magnetic hysteresis alloy:
Rotors of hysteresis motors, and electromagnetic clutches, etc
Alloy | Dimension |
2J21 |
Forged or rolled bar: Diam 20~100mm |
2J23 | |
2J25 | |
2J27 | |
2J23A |
Alloy | C | Si | P | S | Mn | Co | Mo | Ni | Fe |
Not more than | |||||||||
2J21 | 0.03 | 0.03 | 0.025 | 0.025 | 0.10~0.50 | 11.0~13.0 | 10.5~11.5 | balance | |
2J23 | 0.03 | 0.03 | 0.025 | 0.025 | 0.10~0.50 | 11.0~13.0 | 12.5~13.5 | balance | |
2J25 | 0.03 | 0.03 | 0.025 | 0.025 | 0.10~0.50 | 11.0~13.0 | 14.5~15.5 | balance | |
2J27 | 0.03 | 0.03 | 0.025 | 0.025 | 0.10~0.50 | 11.0~13.0 | 16.5~17.5 | balance | |
2J23A | 0.03 | 0.03 | 0.025 | 0.025 | 0.10~0.50 | 11.0~13.0 | 13.5~14.5 | Not more than 0.07 | balance |
Alloy |
Hμ kA/m |
Bμ T |
Pμ kJ/m 3 | Kμ |
Not less than | ||||
2J21 | 9.55~12.73 | 1.00~1.30 | 20 | 0.46 |
2J23 | 14.32~17.50 | 1.00~1.30 | 30 | 0.48 |
2J25 | 17.50~22.62 | 0.90~1.20 | 38 | 0.50 |
2J27 | 24.00~28.80 | 0.90~1.20 | 47 | 0.45 |
2J23A | For reference | For reference | 30 | 0.48 |

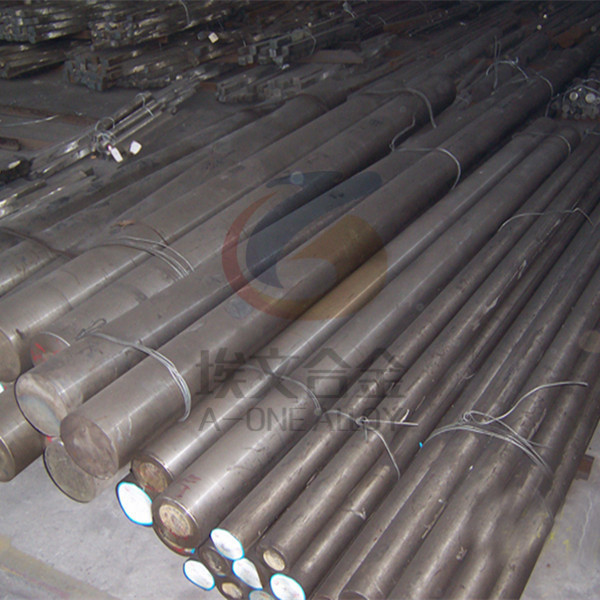

Fe-Co-Mo Magnetic Hysteresis Alloy Bar with size of OD 20-100mm
Precision alloy FROM SUZHOU A-ONE ALLOY
Soft magnetic alloy:HiperCo27, FeCo27, Mumetal, HiperCo50, Permendur, Permalloy, Mumetal, 45-Permalloy, 65-Permalloy, Hy-Ra49, ThermoPerm, PC, PB, PE, 12Alfenlo, Supermendur
Permanent magnetic alloy: P6, Vicalloy, Comolloy
Elastic alloy:Phynox, Elgiloy, Ni-Span-C 902, EL-3, EL-4, Elcolloy, Diaflex, Nivaflex, K·R·N, Incoloy 903
Expansion alloy:Kovar,Invar,Super-Invar, Nilo36, Nilo42, Nilo K, Vacon 12, Ceramvar, Vacon20, KV-1, KV-2, KV-3, KV-4,
