Elgiloy strip, wire, bar, rod, factory direct sale, with good price
Introduction
Elgiloy (Co-Cr-Ni Alloy) is a "super-alloy" consisting of 39-41% Cobalt, 19-21% Chromium, 14-16% Nickel, 11.3-20.5% Iron, 6-8% Molybdenum, and 1.5-2.5% Manganese.
Elgiloy alloy was originally developed for the manufacture of watches, and is applied in aerospace, oil, natural gas, medical and clinical equipment and other high-tech fields and key parts because of its excellent corrosion resistance, mechanical properties and long service life. The alloy has high corrosion resistance and low relaxation stress at the height of 600 F.
Density=8.3g/cm3
Character of elgiloy
- Combination of high strength, ductility and good mechanical properties at ambient temperatures
- Excellent fatigue life
- Excellent corrosion resistance in numerous environments
- Non magnetic
- Age hardenable (Spring Temper only)
- Good for sea water applications
Application of elgiloy
- Springs
- Seal components
- Medical devices
- Components for watches
- Aerospace applications
- Petro-chemical applications
- Marine engineering
Equal grades
- UNS R30003
- 3J21
- Phynox
- W.Nr 2.4711
Typical composition
C=0.15,NI=15.50,Co=40.00,Cr=20.00,Mo=7.00,Mn=2.00,Fe=remainder
Standard
- AMS 5833
- AMS 5834
- AMS 5876
- ASTM F1058
- ISO 5832-7
- ISO 15156-3
Forms available at XUNSHI

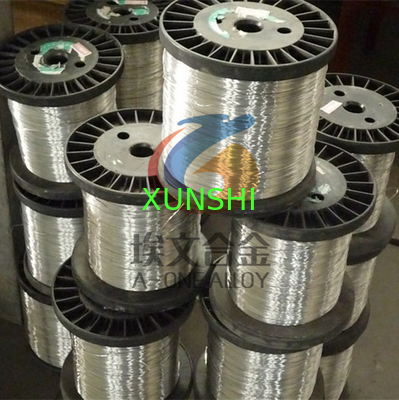

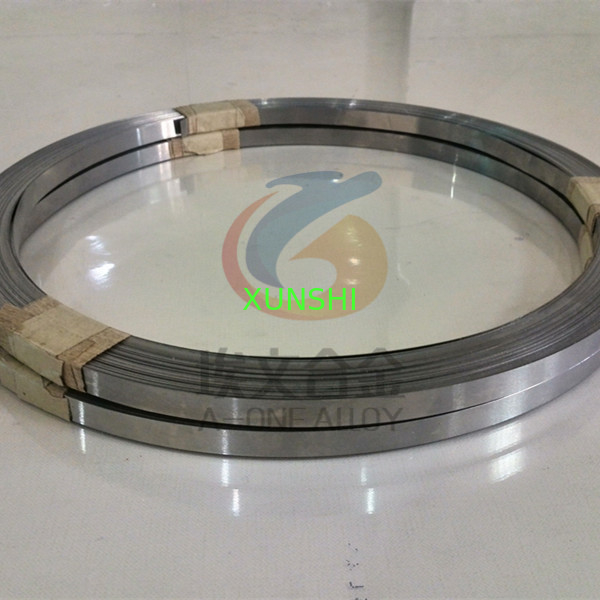

Strip, wire, bar, rod
Delivery of elgiloy
We keep stock of Elgiloy cold rolled strip, thickness 0.10mm, 0.12mm and 0.2mm, which could be delivered very fast. For other form of products, please contact XUNSHI to confirm the delivery
*Elgiloy is a registered trademark of ESM
