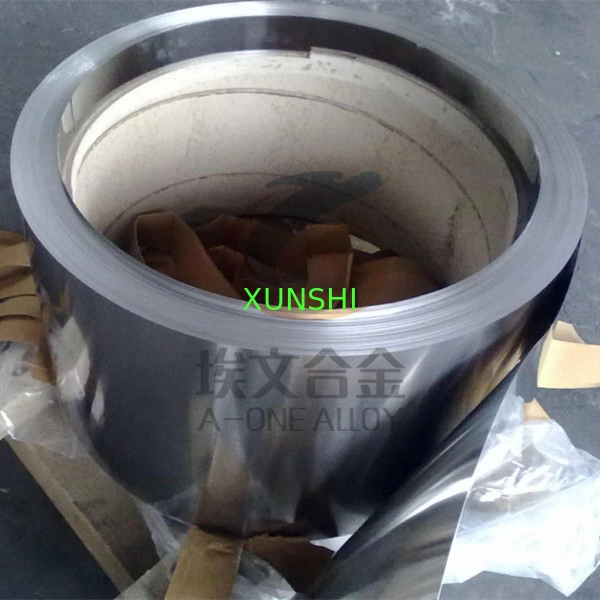

Corrosion Resistant Soft Magnetic Alloy 1J117, 4113IM

Product Details:

Place of Origin:	Suzhou, China
Brand Name:	AIWEN
Certification:	SGS, BV, TUV
Model Number:	1J117,4113IM

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	Available per request
Packaging Details:	Wooden case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	10MT/month

Contact Now

Detailed Product Description

Thickness:	0.1-6mm	Width:	10-620mm
Length:	In Coil	Application:	Various
Technique:	Cold Rolled	Grade:	4113IM
Standard:	JIS, AISI, GB, DIN

Corrosion Resistant Soft Magnetic Alloy 1J117/430FR(ASTM)

1J117 is a Fe-Cr alloy mainly used in electromagnetic devices work under oxidizing medium and hydrazine medium as well as all kinds of control device, armature, electromagnet, pneumatic valve, hydraulic valve magnetic conductor work under humid and corrosive medium without protection.

Grade & Chemical Composition (see Table 1) Table 1 Grade & Chemical Composition

Grade	Chemical Composition (%)
Grade	C≤	Si≤	Mn	P≤	S≤	Cr	Ni	Ti	Fe
1J36	0.03	0.2	≤0.6	0.02	0.02		35.0~37.0		Balance
1J116		0.2	≤0.6			15.5~16.5
1J117		0.15	0.3~0.7			17.0~18.5	0.5~0.7	0.3~0.7

Mechanical Property (see Table 2) Table 2 Mechanical Property

Grade	Tensile Strenght δb/MPa	Elongation, δ5(%)	Shrikage, ψ(%)
1J36	460	40	80
1J116	400	30
1J117	400	37	70

Physical Property (see Table3 – Table 5) Table3 Physical Property

Grade	Density g/cm3	Resistivity ρ, μΩ/m	Curie Point Tc/°C	Hardness, HBS
1J36	8.1	0.8	230±20
1J116	7.75	0.44	670~700	188(Hot Forged)
1J117	7.77		670~700

For other properties of 1J36, 1J116, 1J117, please feel free to contact Huaan steel for more information.
