Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm

Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm

    • Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm
    • Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm
    • Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm
    • Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm
  • Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: XUNSHI
    Certification: ISO9001:2015, ROHS
    Model Number: XS-B080

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 meters
    Price: Available per request
    Packaging Details: By customers' require
    Delivery Time: 3 days
    Payment Terms: T/T
    Supply Ability: 1,000,000 meters per year
    Contact Now
    Detailed Product Description

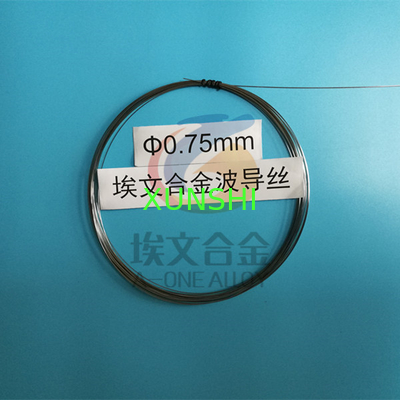

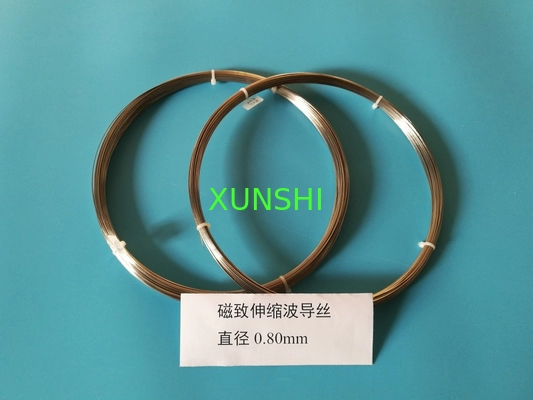

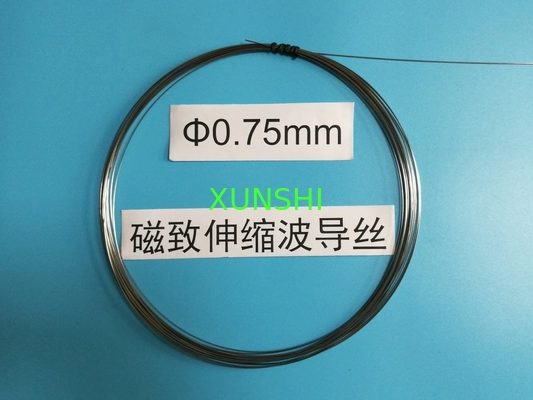

    Type: FeNi Alloy Diameter: 0.50mm, 0.75mm, 0.80mm

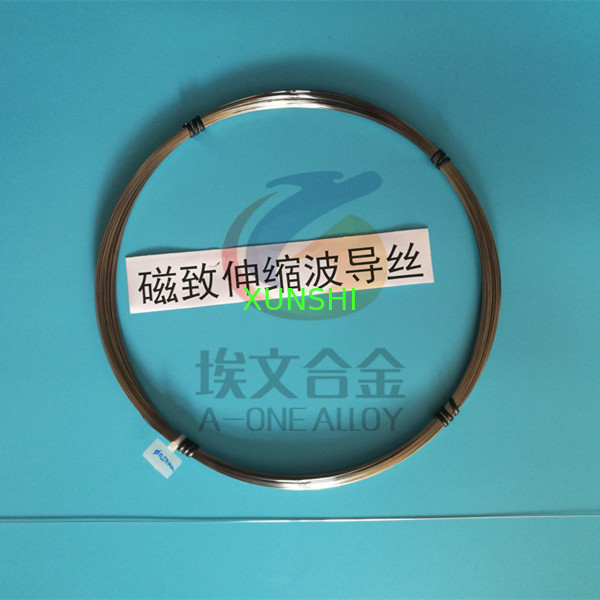

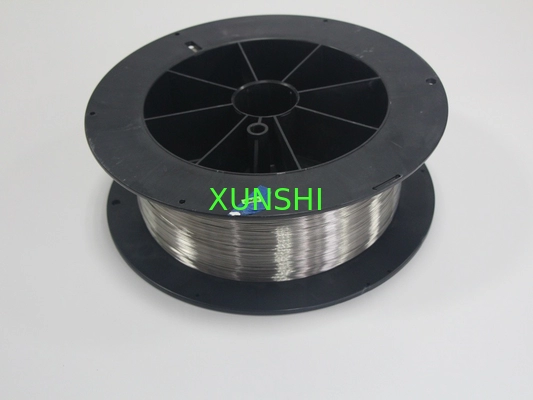

    Delivery Form: In Reel Or Straight Wire

    Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt. When placed in a magnetic field, these materials change size and/or shape.

    An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect. When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field. The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire.

    The current is applied as a short-duration pulse, -1 or 2 µs; the minimum current density is along the center of the wire and the maximum at the wire surface. This is due to the skin effect.

    The magnetic field intensity is also greatest at the wire surface. This aids in developing the waveguide twist. Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave. The magnetostrictive wire is therefore called the waveguide.

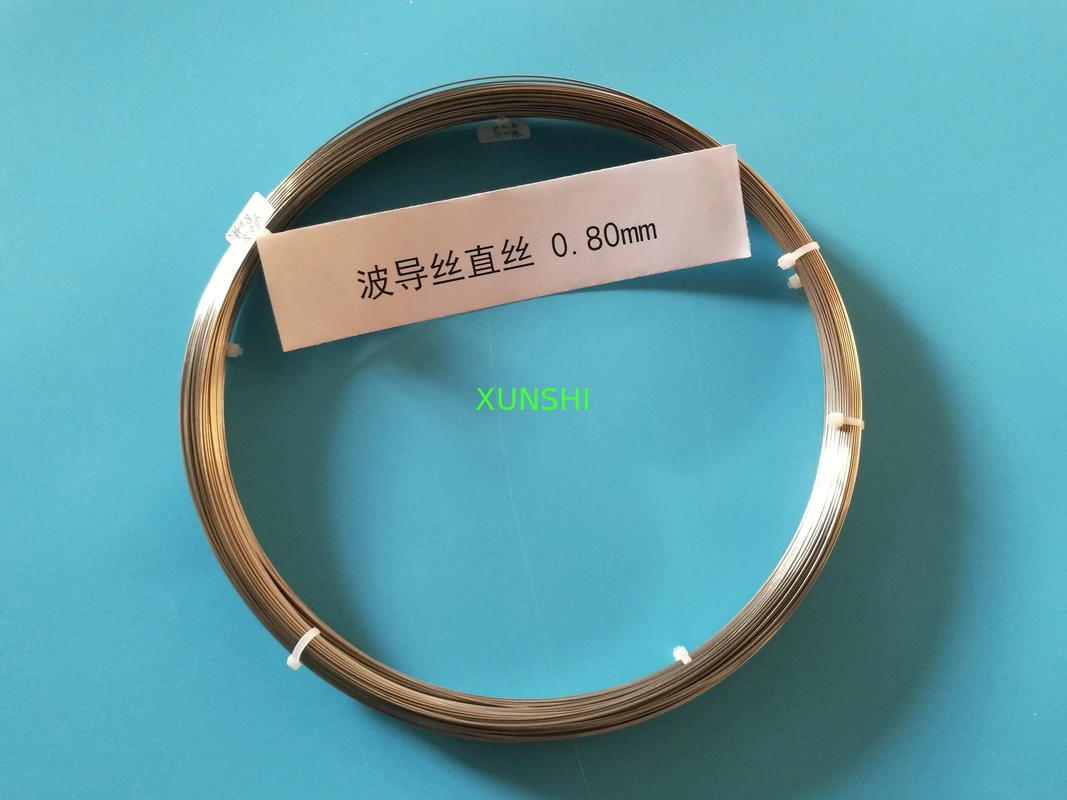

    During the communication with customers XUNSHI learnt that straight wire is more convenient for the assemble and the signal is better as well. After years' experiment, XUNSHI sucessfully produced straight magnetostrictive waveguide wire. Several customers tested the sample and the result is really good.



    Diameter(mm) Stock amont(meters) Note
    0.50 100,000 Straight wire in stock
    0.75 20,000 Straight wire in stock
    0.80 12,500 Straight wire in stock
    1.00 5000 Straight wire available on request






    Magnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mmMagnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mmMagnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mmMagnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mmMagnetostrictive wire for magnetostrictive position sensor level sensor diameter 0.80mm
