Place of Origin: | Suzhou, China |
Brand Name: | AIWEN |
Certification: | Aone-alloy |
Model Number: | SZAW-FeGa |
Minimum Order Quantity: | 100g |
---|---|
Price: | USD9.6/g |
Packaging Details: | Packed by bubble bag and carton |
Delivery Time: | 10days |
Payment Terms: | T/T |
Supply Ability: | 1000g per month |

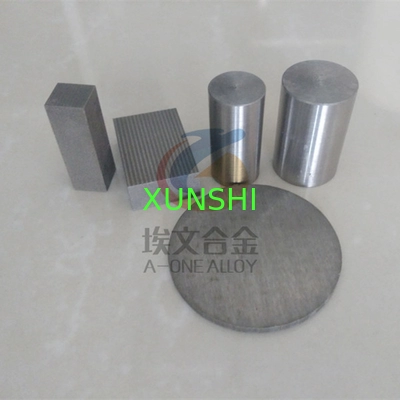

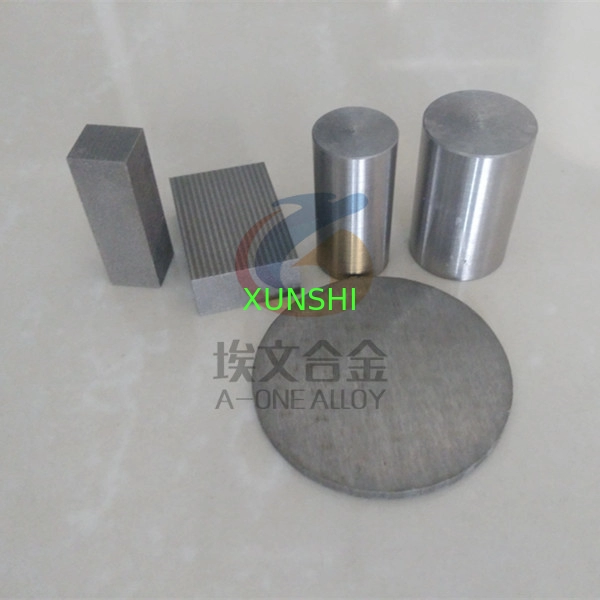

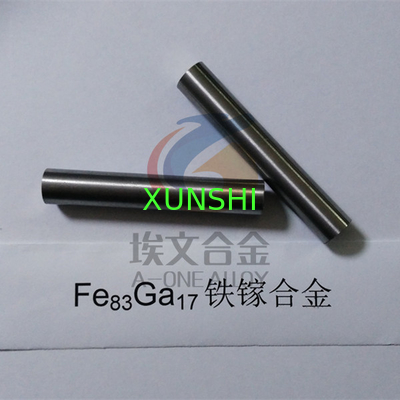

Galfenol Fe83Ga17 Giant Magnetostrictive Alloy Round Bar/ Wire/Plate
FeGa Alloy(Galfenol) is a magnetostrictive alloy comprised primarily of the elements iron (Fe) and gallium (Ga).
It was hypothesized that other magnetostrictive alloys had to exist that combined the mechanical robustness of Ni and the giant magnetostrictive response of Terfenol-D.
Galfenol exhibits a unique combination of mechanical and magnetostrictive (magnetic) properties that legacy smart materials do not.
Composition: Fe83Ga17
Magnetostriction λ,ppm(125~500 Oe, 12~36MPa): 180~300
Density(ρg),g/cm3:7.6
Curie Temperature(TC),℃:>760
Relative Permeability(μr):32~180
Conductivity(ρ),10-6Ωcm:80
Tensile Strength(σb),MPa:>450
Product size range:

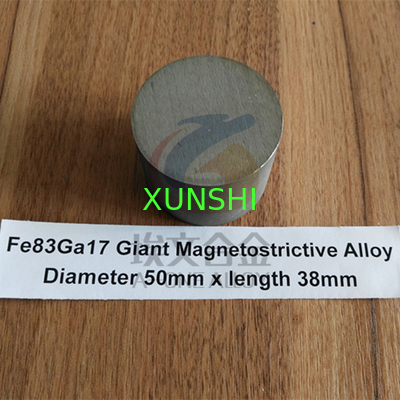

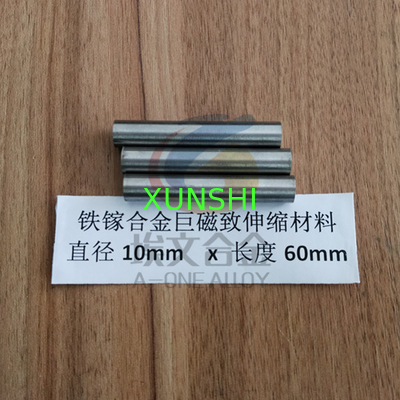

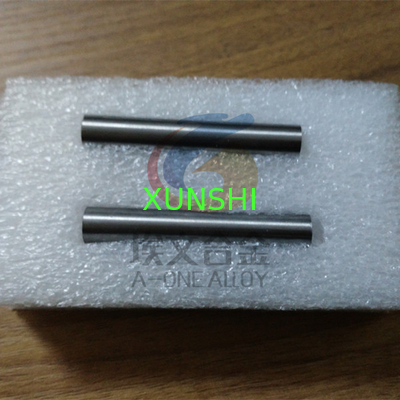

Bar: diameter φ6~25mm

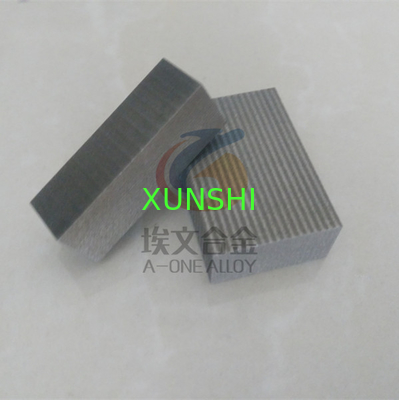

Strip: thickness<1mm

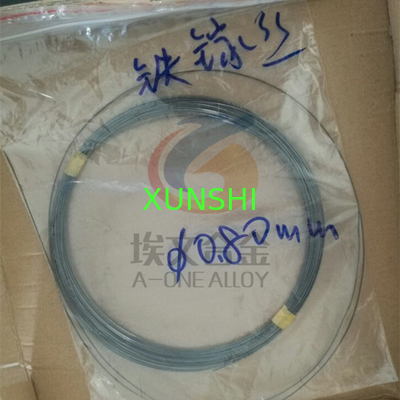

Wire: diameter<φ3 mm(stock size: diameter 0.80mm and 0.5mm)
Any other request, pls feel free to contact us.
