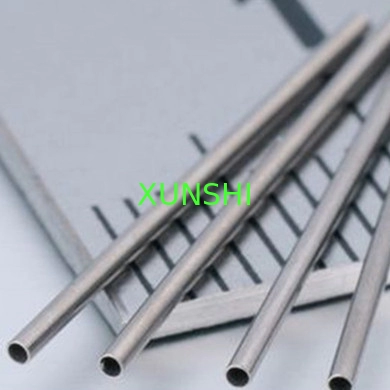

316LVM Stainless steel capillary

316LVM Stainless steel capillary

• Product name: 316LVM Stainless steel capillary tube for automatic precise apparatus, electronic part
• Standard: GB3090-2000 / ASTM A632-04
• Material: 316lvm,304, 304L, 316, 316L, 321, 310
• Special alloys available upon request
• Size range: O.D:ф0.1mm-ф8mm
• Thickness: 0.015mm-1mm
• Length:10 m(Max) or as your requirement
• Process: argon arc welding /TIG
• Finish: Annealed & pickled, polished
• Ends: Beveled or plain end, square cut, burr free
• Other materials available: Kovar, Invar and other expansion alloys
• Application: Biomedical, biotech, microbiology, micro-antenna tube, medical instruments piece, Precision instruments and apparatus, electronic and electric appliances, automatic apparatus and more
• Packaging details: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthy delivery or as requested.
• Shipment: By sea with FCL/LCL container or in bulk, by airfreight, by railway
• Inspection & test:
  • 1.100% PMI, spectro chemical analysis test for raw material
  • 2.100% dimension & visual examination
  • Notes: All the tests and inspection result need to be showed in reports according to standard and specification.
