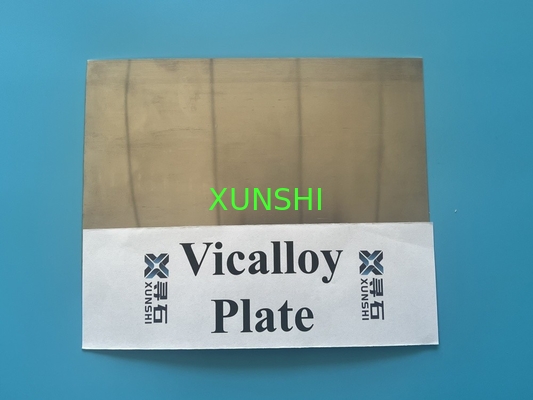

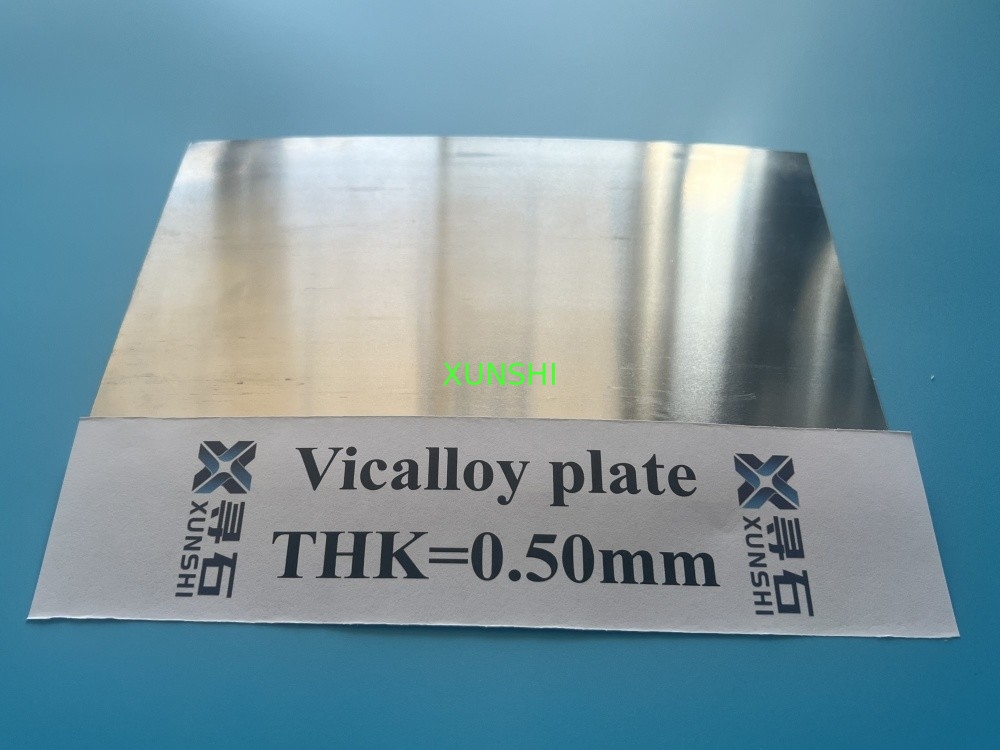

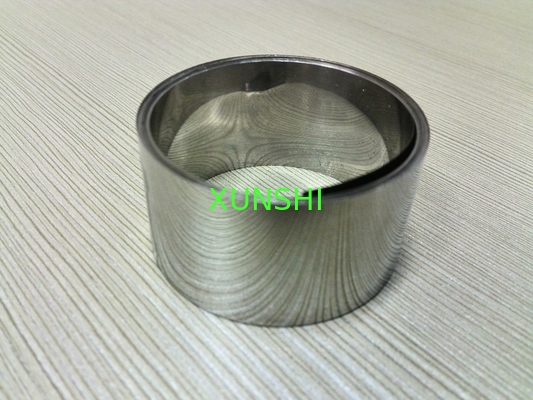

Vicalloy Iron-Cobalt- Vanadium Hysteresis alloy strip made in China

Product Details:

Place of Origin:	Suzhou, China
Brand Name:	AIWEN
Certification:	ISO
Model Number:	Vicalloy

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	Available per request
Packaging Details:	Wooden case, carton or per customer requirements
Delivery Time:	6-8 weeks
Payment Terms:	T/T
Supply Ability:	10000 kg per month

Contact Now

Detailed Product Description

Type:	Permanent	Shape:	Strip
Application:	Industrial Magnet

Vicalloy Iron-Cobalt- Vanadium Hysteresis alloy strip made in China

Vicalloy is a family of cobalt-iron-vanadium wrought permanently magnetic alloys. Vicalloy is precipitation hardened and can be formed by a number of cold working techniques. It is commonly used in electromechanical device applications, such as Wiegand wires because it shows a large Wiegand effect.

Hysteresis alloys (Iron-Cobalt- Vanadium)
Representive Grades: 2J4, 2J7, 2J10, 2J11, 2J51, 2J52, 2J53

Note:
A ductile, semi-hard magnetic alloy which has been used in laminations for hysteresis motors. Alloy exhibits highest efficiency (loss per unit magnetic field strength) of any known material.
Vicalloy I is a cobalt-vandium-iron ductile permanent magnet alloy. The material is used in electrical and electronic applications. Magnetic properties are optimized by heat-treating cold rolled material. Vicalloy I has a relatively high remanence and low coercive force.

Type	Grade	Relative Grade	Standard
Deformation Fe-Cr-Co Permanent Magnetic Alloy	2J83	-	YB/T5261-1993
	2J84	CKSR400(Japan)
	2J85	CKSR500(Japan)
Magnetic Hysteresis Alloy	2J4	P6 alloy(U.S.A.)	GB/T14988-1994 Cold-Rolled Strips For Hysteresis Alloys
	2J7	52КФ(Russia)
	2J9	52КФ9(Russia)
	2J10	Vicalloy I(U.S.A.)
	2J11	52КФ11(Russia)
	2J12	52КФ12(Russia)
	2J51	12Кв14(Russia)
	2J52	16КвМ(Russia)
	2J53	12гн(Russia)

Grade and Chemical Composition (see Table 1)
Table 1 Grade and Chemical Composition

Grade	Chemical Composition (%)
	C	Si	P	S	Mn	Co	V	Ni	Mo	W	Fe
	≤				Mn	Co	V	Ni	Mo	W	Fe
2J4	0.12	0.70	0.025	0.020	≤0.70	44～46	3.50～4.50	5.30～ 6.70			Balance
2J7	0.12	0.70	0.025	0.020	≤0.70	51～53	6.50～7.50	≤0.70			Balance
2J9	0.12	0.70	0.025	0.020	≤0.70	51～53	8.50～9.50	≤0.70			Balance
2J10	0.12	0.70	0.025	0.020	≤0.70	51～53	9.50～10.5	≤0.70			Balance
2J11	0.12	0.70	0.025	0.020	≤0.70	51～53	10.5～11.5	≤0.70			Balance
2J12	0.12	0.70	0.025	0.020	≤0.70	51～53	11.5～12.5	≤0.70			Balance
2J51	0.03	0.50	0.030	0.030	≤0.70	11.0～13.0				14.0～15.0	Balance
2J52	0.03	0.50	0.030	0.030	≤0.70	15.0～17.0			5.00～6.00	10.0～11.0	Balance
2J53	0.03	0.50	0.030	0.030	11.5～ 12.5			3.00～ 4.00	2.50～ 3.50		Balance

Note: Molybdenum can be substituted by 1.30-1.70% vanadium for 2J53 alloy.

Magnetic Hysteresis Property (See Table 2)
Table 2 Magnetic Hysteresis Property Of Cold-Rolled Strips

Grade	Magnetic field intensity (Hμ)	Flux Density (Bμ)	Pμ	Kμ
Grade	A/m	T	erg/cm³≥	kμ≥
2J4	4000～5200	1.3～1.6	1.5×10⁵	0.62
2J7	6400～9600	1～1.3	1.9×10⁵	0.61
2J9	8800～9600	0.9～1.25	2.2×10⁵	0.59
2J10	14400～18400	0.9～1.2	3.0×10⁵	0.58
2J11	16000～20800	0.9～1.2	3.5×10⁵	0.57
2J12	20000～28000	0.8～1.1	4.5×10⁵	0.56
2J51	2800～4000	1.2～1.6	1.0×10⁵	0.58
2J52	4800～7200	0.9～1.35	1.1×10⁵	0.50
2J53	6400～12000	0.6～0.9	1.0×10⁵	0.45

Physical Property (see Table 3 )
Table 3 Physical Property Of Alloys

Grade	Curie point Tc/℃	Relative Density/(g/cm³)	Thermal Coefficient (20～300℃)/(10^-6/K)	Resistivity(room temperature)/(μΩ•cm)	Modulus of Elasticity /MPa
2J4	860	8.2	10.7	33	176400
2J7		8.1	10.6	61	176400
2J9		8.1	10.6	65	176400
2J10		8.1	11.3	71	186200
2J11		8.1	11.2	77	166600
2J12		8.1	13.4	74	166600
2J51	830	8.7	10.9	32	196000
2J52	830	8.2	11.0	30	196000
2J53	-	7.8	15.5	61	166600

Usage: It is used to make the rotor of the hysteresis motor.

A-one Alloy supply Vicalloy with high performance and competitive prices.

Contact Details

Suzhou Xunshi New Material Co., Ltd

Contact Person: Mr. Allen Sun

Tel: 86--18112628895
