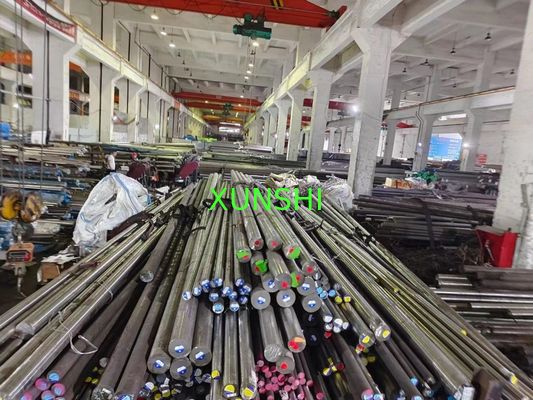

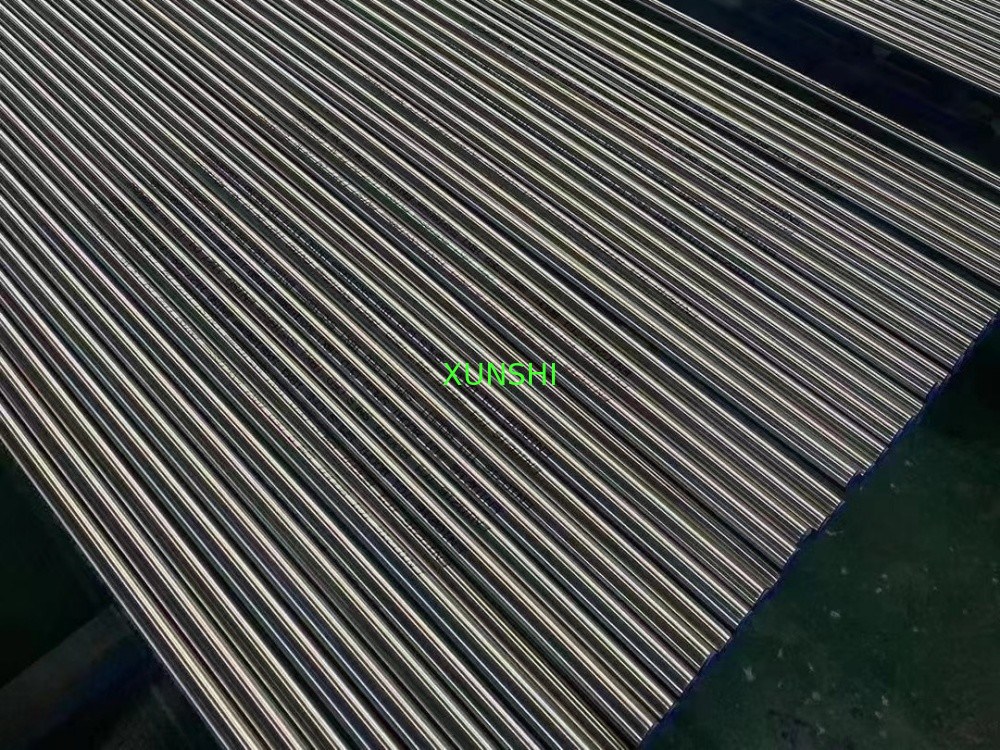

Hastelloy B3 (UNS N10675) Bar, plate, strip, forging, seamless pipe, welded pipe

Hastelloy B3 (UNS N10675)

• Introduction
  • Hastelloy B-3 is a nickel-molybdenum  alloy with excellent resistance to pitting, corrosion, and stress-corrosion  cracking plus, thermal stability superior to that of alloy B-2. In addition,  this nickel steel alloy has great resistance to knife-line and heat–affected  zone attack. Alloy B-3 also withstands sulfuric, acetic, formic and  phosphoric acids, and other non-oxidizing media. Furthermore, this nickel  alloy has excellent resistance to hydrochloric acid at all concentrations and  temperatures. Hastelloy B-3’s distinguishing feature is its ability to  maintain excellent ductility during transient exposures to intermediate  temperatures. Such exposures are routinely experienced during heat treatments  associated with fabrication.
• Characters
  • l    Maintains excellent ductility during transient  exposures to intermediate temperatures
  • l    Excellent resistance to pitting, corrosion and  stress-corrosion cracking
  • l    Excellent resistance to knife-line and heat-affected  zone attack
  • l    Excellent resistance to acetic, formic and phosphoric  acids and other non-oxidizing media
  • l    Resistance to hydrochloric acid at all concentrations  and temperatures
  • l    Thermal stability superior to alloy B-2
• Application
  • l    Chemical processes
  • l    Vacuum furnaces
  • l    Mechanical components in reducing environments
• Equal grades
  • UNS N10675,NS3203,NS323,Nimofer 6928
• Chemical composition  (%)
  • Ni≥65,Mo=27-32,Co≤3,Mn≤3,W≤3,Fe=1-3,Cr=1-3,Al≤0.5,Cu≤0.2,Nb≤0.2,Ta≤0.2,Ti≤       0.2,V≤0.2,Zr≤0.1,P≤0.03,S≤0.01,C≤0.01
• Standards
  • Pipe Smls
  • Pipe Welded
  • Tube Smls
  • Tube Welded
  • Sheet/Plate
  • Bar
  • Forging
  • Fitting
  • B622
  • B619
  • B622
  • B626
  • B333
  • B335
  • B564
  • B366
• Forms available

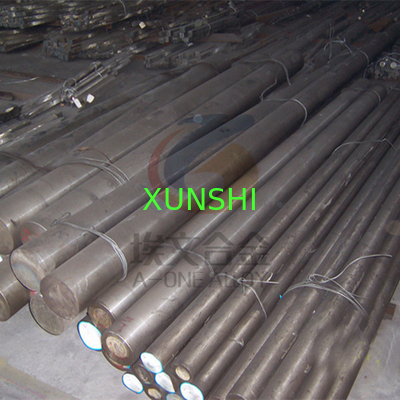

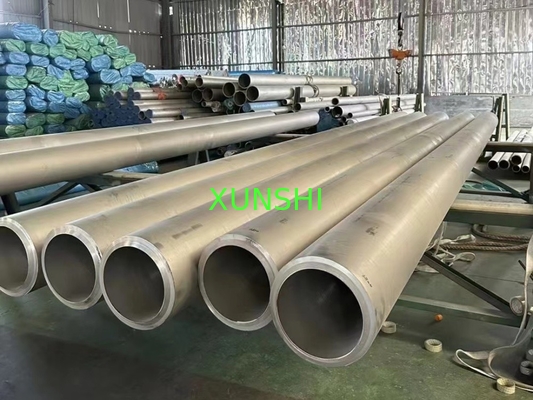

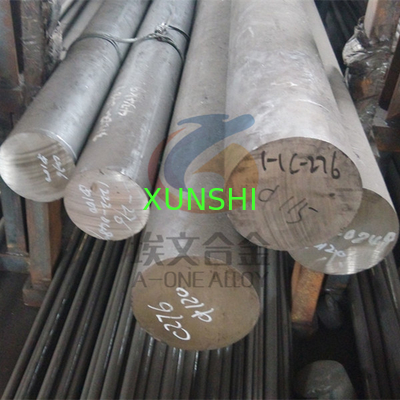

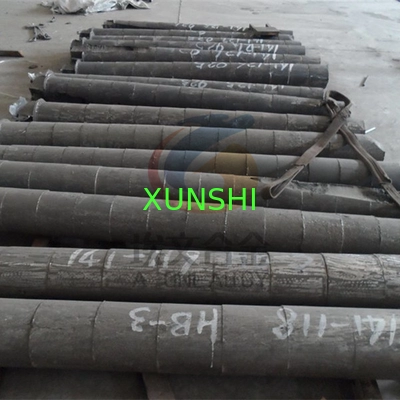

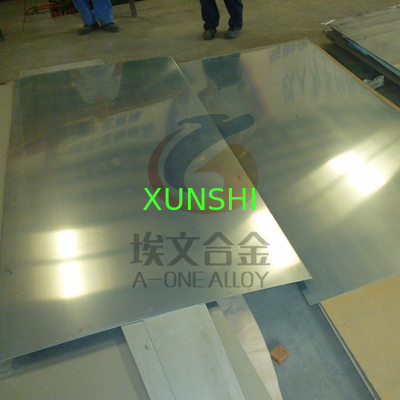

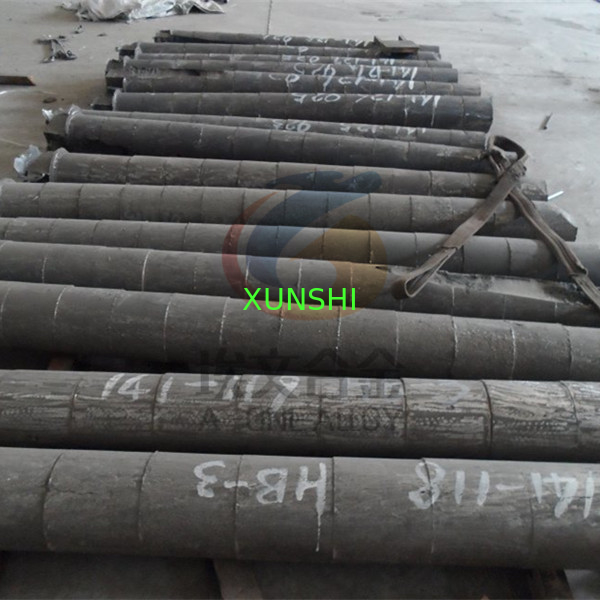

  • Bar, plate, strip, forging, seamless  pipe, welded pipe
• Delivery
  • Hastelloy B3 bar could be delivered  within 2 weeks. The delivery of other products is available per request.

*Hastelloy is the registered trademark name of HaynesInternational, Inc.
