XUNSHI supply HYMU80 soft magnetic alloy in forms of round bar, forging, ring, strip,wire and so on. We could also supply HYMU80 per customer requirements. Addtionally we could deliver customer parts per customer drawing and heat treated.
XUNSHI has rich experience of supplying high performance alloys to customers from worlldwide. Customers speak high of our product quality and service.
Chemical composition
- C: 0.05 max
- Mn: 0.8 max
- Si: 0.5 max
- P: 0.02 max
- S: 0.01 max
- Cr: 0.30 max
- Ni: 79.0-82.0
- Mo: 3.5-6.0
- Co: 0.5 max
- Cu: 0.3 max
- Fe: balance
Feature of HYMU 80
- Extremely high initial permeability
- Maximum permeability
- Minimum hysteresis loss
HYMU 80 is a magnetic shielding alloy that’s comprised of a range of nickel iron alloys. It is 80 percent nickel-iron-molybdeum and its main characteristic includes high permeability. It’s useful for shielding against static or low frequency magnetic fields.
Application of HYMU 80
- Transformer cores.
- Telephone and recording devices.
- Protecting sensitive medical equipment in an MRI facility.
- Increasing the quality of home theatre systems.
- Protecting electrical components from stray magnetic fields.
- Tape wound toroids and laminations where compactness and weight factors are important.
Forms of supply
- Forging

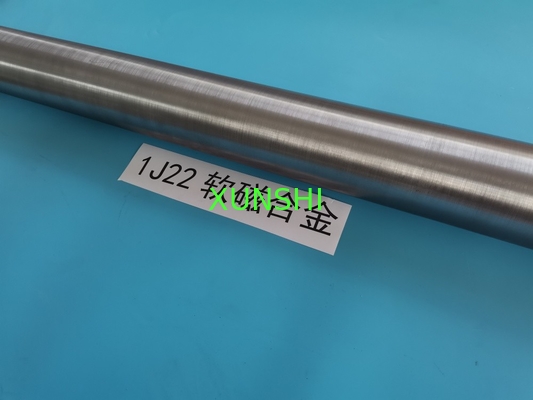

- Round bar
- Wire rod
- Wire

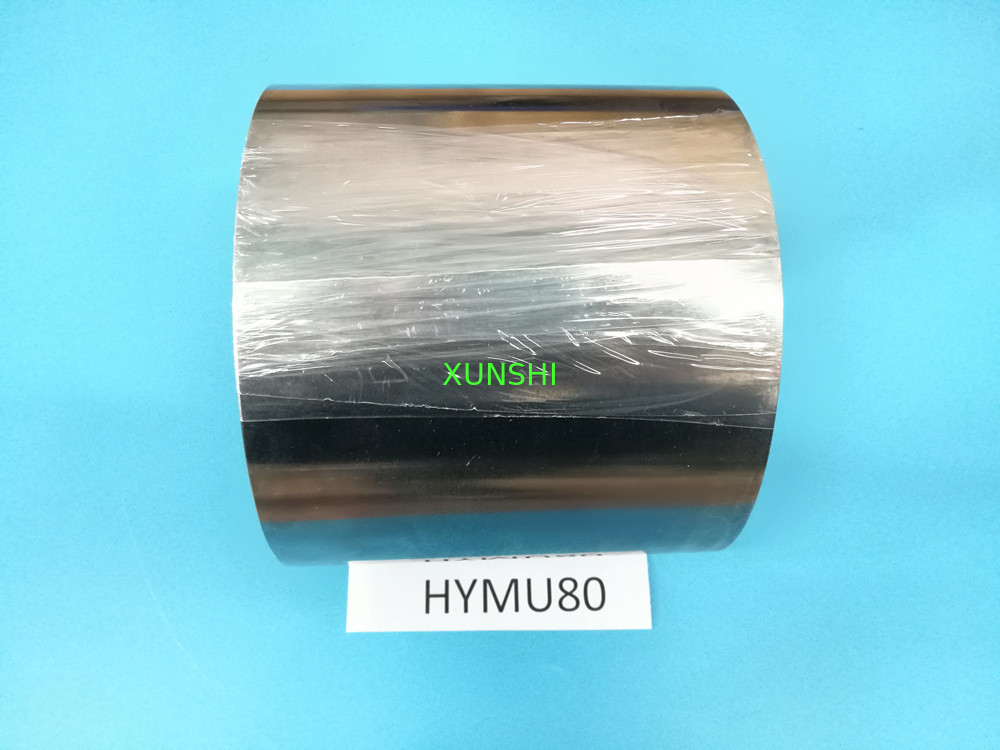

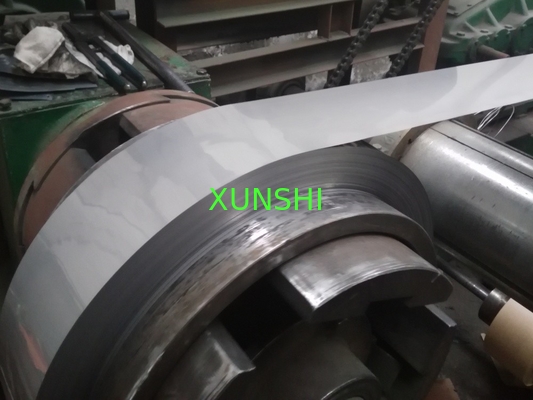

- Cold rolled strip
- Hot rolled plate

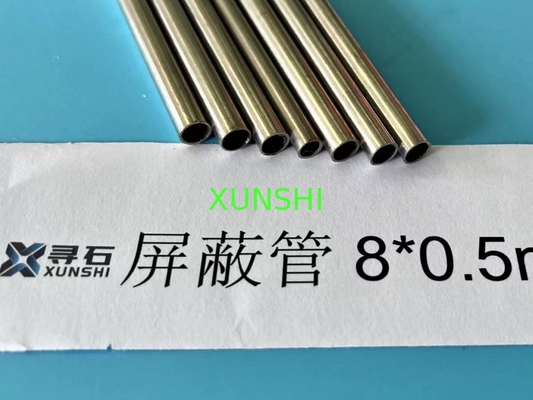

- Seamless pipe
- Welded pipe
- Capillary
