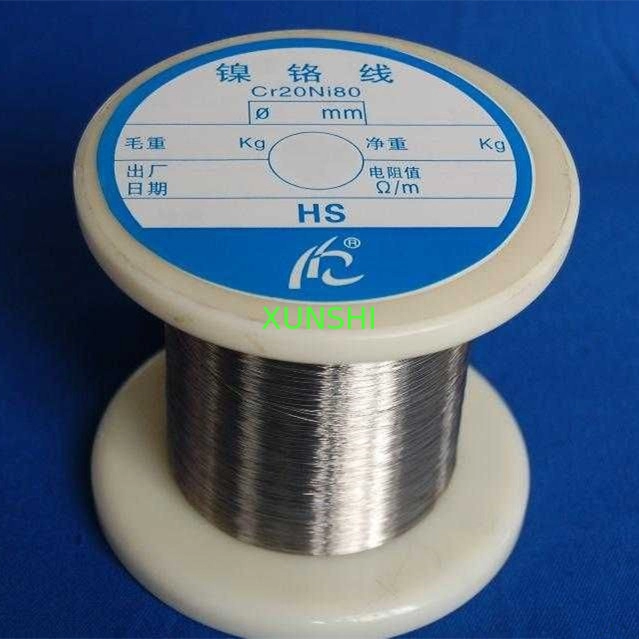

Alloy Wire for Magnetostrictive Sensors in Stock

Alloy Wire for Magnetostrictive Sensors in Stock

Alloy Wire for Magnetostrictive Sensors in Stock

Product Details:

Place of Origin: Suzhou, China
Brand Name: AIWEN
Certification: SH
Model Number: SH-Magnetostrictive wire

Payment & Shipping Terms:

Minimum Order Quantity: 10meter
Price: Available per request
Packaging Details: By customers' require
Delivery Time: 1-3DAYS
Payment Terms: T/T
Supply Ability: 100000 meters per year
Contact Now
Detailed Product Description

Alloy Wire for Magnetostrictive Sensors in Stock

  • Name:
    • Alloy wire for magnetostrictive sensors
    • Waveguide wire
    • Waveguide wire used for transducer
    • Waveguide wire used for sensor
  • Property:
    • Magnetostrictive waveguide wire for level gauge level sensor and displacement sensor
    • Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt
    • When placed in a magnetic field, these materials change size and/or shape
    • An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect
    • When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field
    • The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire
    • The current is applied as a short-duration pulse, -1 or 2 us, the minimum current density is along the center of the wire and the maximum at the wire surface
    • This is due to the skin effect
    • The magnetic field intensity is also greatest at the wire surface
    • This aids in developing the waveguide twist
    • Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave
    • The magnetostrictive wire is therefore called the waveguide
    • The wave travels at the speed of sound in the waveguide material, ~ 3O00 m/s
    • Magnetostriction coefficient: 28PPM
    • Density: 8.1g/cm3
    • Tensile strength: Above 930MPa
    • Working temperature: -40~85℃
  • Applications:
    • Magnetostrictive level gauge
    • Magnetostrictive level sensor
    • Magnetostrictive position sensor
    • Magnetostrictive displacement sensor
    • Magnetostrictive linear displacement transducer
    • Magnetostrictive transducer
    • Other sensors where magnetostrictive wire needed
    • Size of wire in stock: 0.15mm, 0.35mm, 0.50mm, 0.75mm, 1.00mm
    • Magnetostrictive level gauge/ level sensor/ position sensor/displacement sensor/ linear displacement transducer/ transducer
