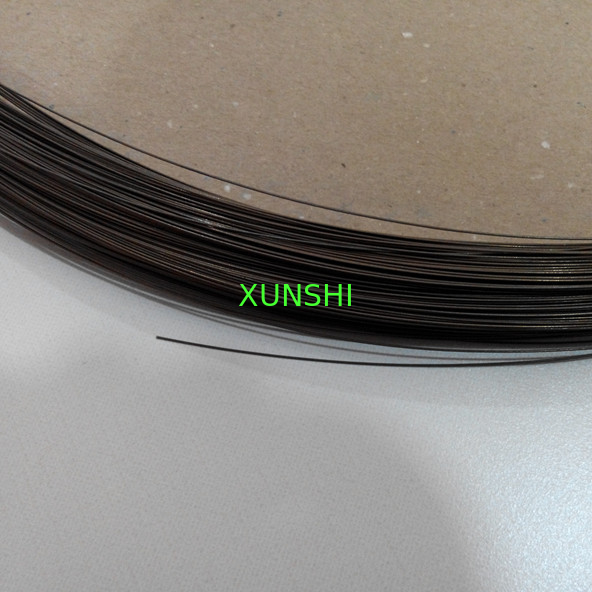

Magnetostrictive wire with OD 0.5mm in stock, made in the USA

Magnetostrictive wire with OD 0.5mm in stock, made in the USA

Magnetostrictive wire with OD 0.5mm in stock, made in the USA

Product Details:

Place of Origin: Suzhou, China
Brand Name: AIWEN
Certification: SH
Model Number: SH-magnetostrictive alloy wire

Payment & Shipping Terms:

Minimum Order Quantity: 100meters
Price: Available per request
Packaging Details: By customers' require
Delivery Time: 1-3days
Payment Terms: T/T
Supply Ability: 100000 KG per year
Contact Now
Detailed Product Description

  • Alloy wire for magnetostrictive sensors made in the USA
  • Waveguide wire
  • Waveguide wire used for transducer
  • Waveguide wire used for sensor
  • Properties:
    • Magnetostrictive waveguide wire for level gauge level sensor and displacement sensor
    • Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt
    • When placed in a magnetic field, these materials change size and/or shape
    • An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect
    • When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field
    • The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire
    • The current is applied as a short-duration pulse, -1 or 2 us, the minimum current density is along the center of the wire and the maximum at the wire surface, due to the skin effect
    • The magnetic field intensity is also greatest at the wire surface
    • This aids in developing the waveguide twist
    • Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave
    • The magnetostrictive wire is therefore called the waveguide
    • The wave travels at the speed of sound in the waveguide material, ~3O00m/s
    • Magnetostriction coefficient: 28PPM
    • Density: 8.1g/cm³
    • Tensile strength: above 930MPa
    • Working temperatures: -40~85℃
  • Applications:
    • Magnetostrictive level gauge
    • Magnetostrictive level sensor
    • Magnetostrictive position sensor
    • Magnetostrictive displacement sensor
    • Magnetostrictive linear displacement transducer
    • Magnetostrictive transducer
    • Other sensors where magnetostrictive wire needed
  • Size of wire in stock: 0.15mm, 0.35mm, 0.50mm, 0.75mm, 1.00mm
  • Magnetostrictive level gauge/ level sensor/ position sensor/ displacement sensor/ linear displacement transducer/ transducer
  • Magnetostrictive wire with OD 0.5mm in stock, made in the USA
