Place of Origin: | Suzhou, China |
Brand Name: | AIWEN |
Certification: | ISO, TUV, , BV, DNV |
Model Number: | Magnetostrictivewaveguide wire |
Minimum Order Quantity: | 100meter |
---|---|
Price: | Available per request |
Packaging Details: | By customers' require |
Delivery Time: | 5days |
Payment Terms: | 30% T/T in advance, balance before shipment |
Supply Ability: | 10000 kg per month |
Type: | Soft | Composite: | Ferrite Magnet |
---|---|---|---|
Shape: | Coil | Application: | Industrial Magnet |

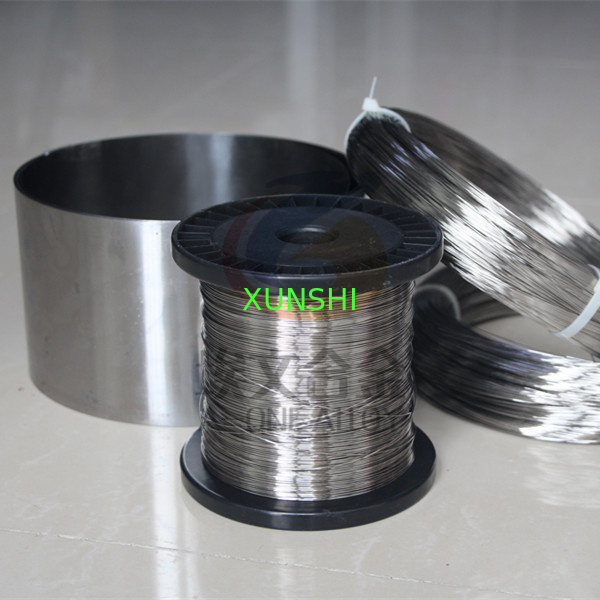

Magnetostrictive waveguide wire used for Magnetostrictive level gauge/sensor
Introduction A-one Alloy has rich experience of supplying Magnetostrictive waveguide wire to customers from worldwide. Our wire is widely used in Magnetostrictive level gauge/sensor. We keep regular stock of wire of diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm. Contact Allen Sun at allen.sun@sz-alloy.com for latest stock information. The current is applied as a short-duration pulse, -1 or 2 µs; the minimum current density is along the center of the wire and the maximum at the wire surface. This is due to the skin effect. The magnetic field intensity is also greatest at the wire surface. This aids in developing the waveguide twist. Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave. The magnetostrictive wire is therefore called the waveguide. Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt. When placed in a magnetic field, these materials change size and/or shape. An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect. When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field. The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire.
|
Character Resistivity: 1.1μΩ·m Tensile strength: >930MPa λ//: 28ppm; λs:≈30ppm Elasticity modulus: 170~190Gpa Shear modulus: 60~65GPa Density:8.0g/cm3 Linear Expansion coefficient: 8.5ppm/K (@20-100°C) Working temperature: -40~100°C
|
Application Magnetostrictive sensor, Magnetostrictive level gauge, |
Sizes available at A-one Alloy Diameter 0.20~1.5mm. Stock size: diameter 0.35mm/0.50mm/0.75mm/1.0mm/1.2mm. In reel or coil. |
Delivery Stock items: within 3 days after payment received. For customized diameter, the delivery is 30 days. |
