1J22 iron-cobalt-vanadium soft magnetic alloy

1J22 iron-cobalt-vanadium soft magnetic alloy

1J22 iron-cobalt-vanadium soft magnetic alloy

Product Details:

Place of Origin: Suzhou, China
Brand Name: AIWEN
Certification: SH
Model Number: SH-1J22 iron-cobalt-vanadium

Payment & Shipping Terms:

Minimum Order Quantity: 20KG
Price: Available per request
Packaging Details: By customers' require
Delivery Time: 20-25days
Payment Terms: T/T
Supply Ability: 100000 KG per year
Contact Now
Detailed Product Description

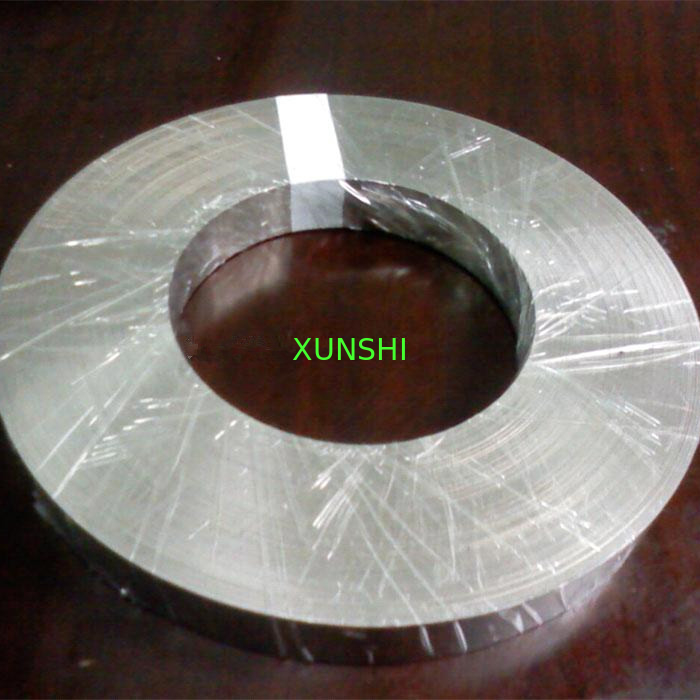

1J22 iron-cobalt-vanadium soft magnetic alloy


  • 1J22 is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation (24 kilogauss), high D.C. maximum permeability, low D.C. coercive force, and low A.C. core loss
  • This alloy is produced in strip form only
  • 1J22 strip has been used primarily in the manufacture of rotor and stator lamination in motors and generators for aircraft power generation applications
  • These lamination are stamped from cold rolled strip and must be final annealed in a protective atmosphere or vacuum environment at a temperature which will provide an optimum combination of mechanical and magnetic properties to withstand the high stresses encountered in service

Size range:
Thicknesses: 0.1~2.0mm
