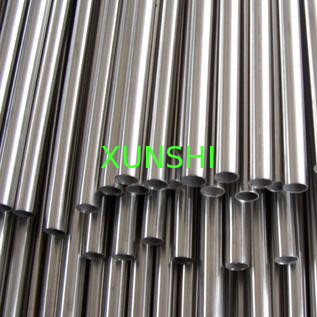

A 789 A 790, A 815 Duplex Stainless Steel Pipes

A 789 A 790, A 815 Duplex Stainless Steel Pipes

A 789 A 790, A 815 Duplex Stainless Steel Pipes

Product Details:

Place of Origin: Suzhou, China
Brand Name: AIWEN
Certification: SH
Model Number: SH-A 789

Payment & Shipping Terms:

Minimum Order Quantity: 1ton
Price: Available per request
Packaging Details: By customers' require
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: 100 ton per year
Contact Now
Detailed Product Description
Application: Chemical Process Vessels, Piping And Heat Exchangers Thickness: 0.5-15mm
Outer Diameter: 6-168mm Type: Seamless
Steel Grade: A 789 Standard: ASTM, GB

  • Standards:
    • ASTM A 182, A 240, A 276,
    • A 789, A 790, A 815
    • UNS S31803, S32205
    • NACE MR0175
  • Forms of duplex 2205 available at Huaan international:
    • Sheet
    • Plate
    • Bar
    • Pipe & tube (welded & seamless)
    • Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lap joints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
    • Welding wire and welding electrode
  • Usages:
    • Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless
  • The combination of Cr, Mo and Ni convey the good resistance of 2205 to chloride pitting and crevice corrosion
  • This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications
  • The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environment
  • What are the characteristics of Duplex 2205:
    • High resistance to chloride stress corrosion cracking
    • Resistance to chloride pitting and crevice corrosion
    • Good general corrosion resistance
    • Good sulfide stress corrosion resistance
    • High strength
    • Good weldability and workability
  • In what applications is Duplex 2205 used:
    • Chemical process vessels, piping and heat exchangers
    • Pulp mill digesters, bleach washers, chip pre-steaming vessels
    • Food processing equipment
    • Oil field piping and heat exchangers
    • Flue gas desulfurization equipment
  • Available size range for seamless pipes and tubes:
    • OD: 6-168mm
    • WT: 0.5-15mm
