Kovar (ASTM F-15)

Introduction

Kovar is a Ni-Fe alloy with 29%  Nickel, 17% Cobalt and the remaining balance is Iron. The expansion  characteristics of Kovar match both borosilicate (or Pyrex) glasses and  alumina ceramics, making it one of the most popular of the controlled  expansion alloys for hermetic sealing applications.

Character

Kovar alloy is magnetic at all  temperatures below the Curie point. Magnetic properties will depend upon heat  treatment; the lower the hardness, the higher the permeability values and  lower hysteresis loss.

Density: 8.36g/cm3

Curie Temp: 435°C(815°F)

Application

Kovar is widely used in applications  such as power tubes, microwave tubes, transistors, diodes, hybrid packages,  and other kinds of scientific instruments.

Equal grades

4J29(China grade), ASTM F-15, NILO K, Pernifer 2918,  Rodar, Dilvar P1, UNS K94610, 29-17 alloy

Chemical  composition

C≤0.020, Ni≤29.0,  Si≤0.20, Mn≤0.30, Co≤17.0, Fe=remainder

Standards

ASTM F-15

Forms available  at A-one Alloy

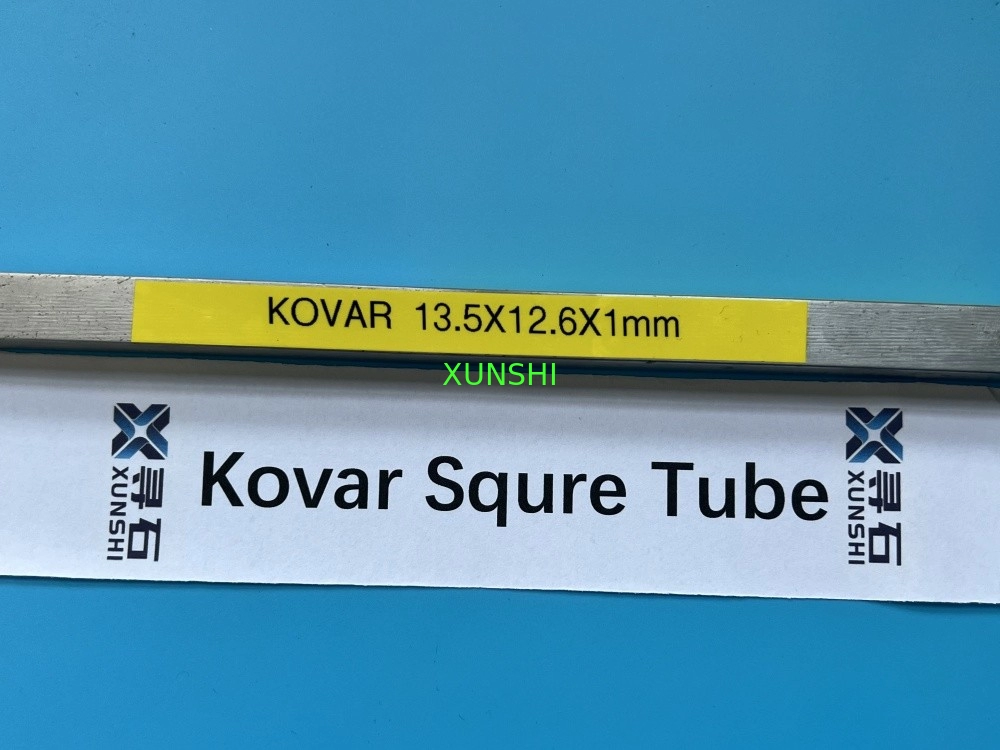

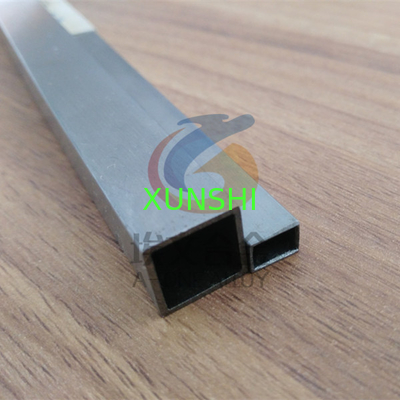

Plate, sheet, strip, wire, rod, bar,  forging, tube, pipe, capillary, square pipe, and parts

Delivery

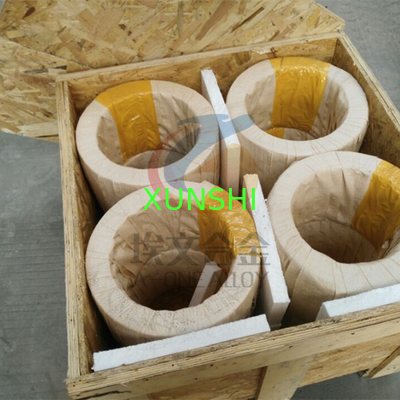

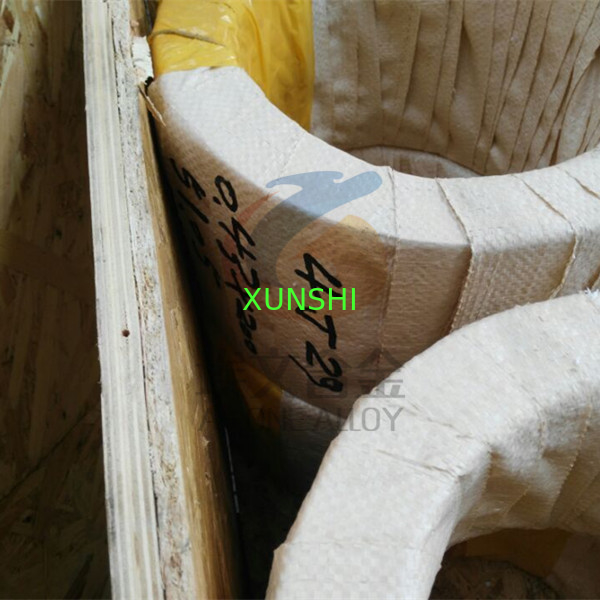

Huge stock of strip, bar and wire in  stock. Fast delivery with 5 days for customized size. Delivery of other  products please confirm with A-one Alloy.
