Place of Origin: | Suzhou, China |
Brand Name: | AIWEN |
Model Number: | Hastelloy C276 UNS N10276 |
Minimum Order Quantity: | 200kg |
---|---|
Price: | Available per request |
Packaging Details: | Carton, woven bag, wooden box |
Delivery Time: | 30 day |
Payment Terms: | T/T |
Supply Ability: | 50MT/month |
Product type: | Tube, pipe, sheet, bar, wire, flange |
Hastelloy C-276 (UNS N10276/W.Nr.2.4819)
Hastelloy C-276
UNS Number N10276
Other common names: Alloy C276, Hastelloy C
We could also supply Hastelloy C22, Hastelloy B3 per customer request
Introduction of Hastelloy C-276
Hastelloy C-276 is a nickel-molybdenum-chromium superalloy with an addition of tungsten designed to have excellent corrosion resistance in a wide range of severe environments. The high nickel and molybdenum contents make the nickel steel alloy especially resistant to pitting and crevice corrosion in reducing environments while chromium conveys resistance to oxidizing media. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures. This nickel alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process application in an as welded condition.
Products
In what forms is Hastelloy C276 Available at Huaanxuyang?
· Sheet
· Plate
· Pipe & Tube (welded and seamless)

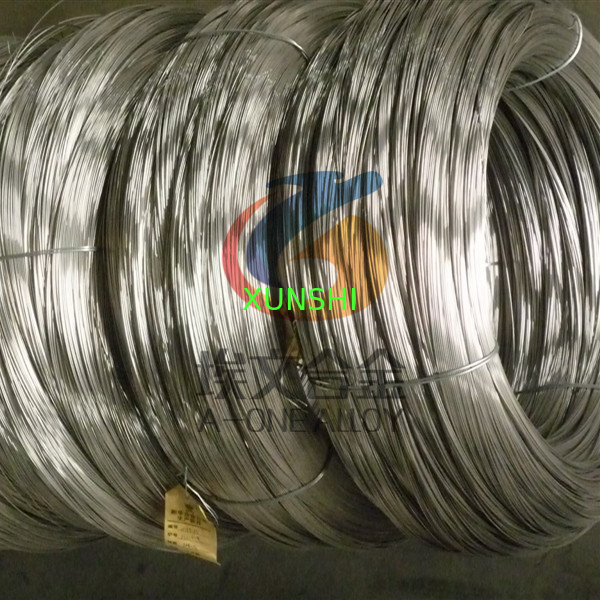

· Wire
· Fittings
Corrosion Resistant Hastelloy C276
Considered one of the most versatile corrosion resistant alloys available, Hastelloy C-276 exhibits excellent resistance in a wide variety of chemical process environments including those with ferric and cupric chlorides, hot contaminated organic and inorganic media, chlorine, formic and acetic acids, acetic anhydride, seawater, brine and hypochlorite and chlorine dioxide solutions. In addition, alloy C-276 resists formation of grain boundary precipitates in the weld heat affected zone making it useful for most chemical processes in the as-welded condition. This alloy has excellent resistance to pitting and stress corrosion cracking.
What are the characteristics of Hastelloy C276?
· Excellent corrosion resistance in reducing environments
· Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides
· High nickel and molybdenum contents providing good corrosion resistance in reducing environments
· Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints
· Resistance to localized corrosion such as pitting and stress-corrosion cracking
· One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide
Chemical Composition, %
Ni |
Mo |
Cr |
Fe |
W |
Co |
Mn |
C |
Remainder |
15.0-17.0 |
14.5-16.5 |
4.0-7.0 |
3.0-4.5 |
2.5 max |
1.0 max |
.01 max |
V |
P |
S |
Si |
|
|
|
|
.35 max |
.04 max |
.03 max |
.08 max |
|
|
|
|
Applications of Hastelloy C-276
· Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
· Flue gas desulfurization systems
· Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
· Sour gas wells
· Pulp and paper production
· Waste treatment
· Pharmaceutical and food processing equipment
Fabrication with Hastelloy C-276
Hastelloy C-276 alloy can be forged, hot-upset and impact extruded. Although the alloy tends to work-harden, you can have it successfully spun, deep-drawn, press formed or punched. All of the common methods of welding can be used, although the oxyacetylene and submerged arc processes are not recommended when the fabricated item is for use in corrosion service.
Hastelloy C-276 Welding Material
Alloy C276 welding products are used as matching composition filler material for welding C276 alloy wrought and cast products, for dissimilar welding applications including other nickel-chromium-molybdenum alloys and stainless steels, and for weld overlay or cladding of steels.
Specifiacations: ASME-SFA-5.14 ERNiCrMo-4
ASTM Specifications
Pipe Smls
|
Pipe Welded
|
Tube Smls
|
Tube Welded
|
Sheet/Plate
|
Bar
|
Forging
|
Fitting
|
Wire
|
---|---|---|---|---|---|---|---|---|
B622
|
B619
|
B622
|
B626
|
B575
|
B574
|
B564
|
B366
|
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
Product Form | Tensile (ksi) | .2% Yield (ksi) | Elongation % |
---|---|---|---|
Bar | 110.0 | 52.6 | 62 |
Plate | 107.4 | 50.3 | 67 |
Sheet | 115.5 | 54.6 | 60 |
Tube & Pipe | 105.4 | 45.4 | 70 |
