Monel K500 (UNSN05500) (Alloy K500)

Introduction

Monel K500 is a  precipitation-hardenable nickel-copper alloy that combines the excellent  corrosion resistance characteristic of Monel 400 with the added advantage of  greater strength and hardness. These amplified properties, strength and  hardness, are obtained by adding aluminum and titanium to the nickel-copper  base and by a thermal processing used to effect precipitation, typically  called age hardening or aging. When in the age-hardened condition, Monel  K-500 has a greater tendency toward stress-corrosion cracking in some  environments than Monel 400. Alloy K-500 has approximately three times the  yield strength and double the tensile strength when compared with alloy 400.  Plus, it can be further strengthened by cold working prior to precipitation  hardening. The strength of this nickel steel alloy is maintained to 1200° F  but stays ductile and tough down to temperatures of 400° F. Its melting range  is 2400-2460° F.

This nickel alloy is spark resistant and non-magnetic to -200° F.  However, it is possible to develop a magnetic layer on the surface of the  material during processing. Aluminum and copper may be selectively oxidized  during heating, leaving a magnetic nickel rich film on the outside. Pickling  or bright dipping in acid can remove this magnetic film and restore the  non-magnetic properties.

Density:8.8g/cm³

Character of Monel K500

l    Corrosion resistance in an extensive range of marine  and chemical environments. From pure water to non-oxidizing mineral acids,  salts and alkalis.

l    Excellent resistance to high velocity sea water

l    Resistant to a sour-gas environment

l    Excellent mechanical properties from sub-zero  temperatures up to about 480C

l    Non-magnetic alloy

Application of Monel K500

l    Sour-gas service applications

l    Oil and gas production safety lifts and valves

l    Oil-well tools and instruments like drill collars

l    Oil well industry

l    Doctor blades and scrapers

l    Chains, cables, springs, valve trim, fasteners for  marine service

l    Pump shafts and impellers in marine service

Equal grade

UNS N05500, Alloy K500

Chemical composition  (%)

Ni=63.0~70.0, Al=2.30~3.15,  Ti=0.35~0.85, C≤0.25, Mn≤1.5, Fe≤2.0,  S≤0.010, Si≤0.50, Cu=Remainder

Standards

AMS 4675

AMS 4676

ASTM B865

Forms of Monel K500 available at A-one  Alloy

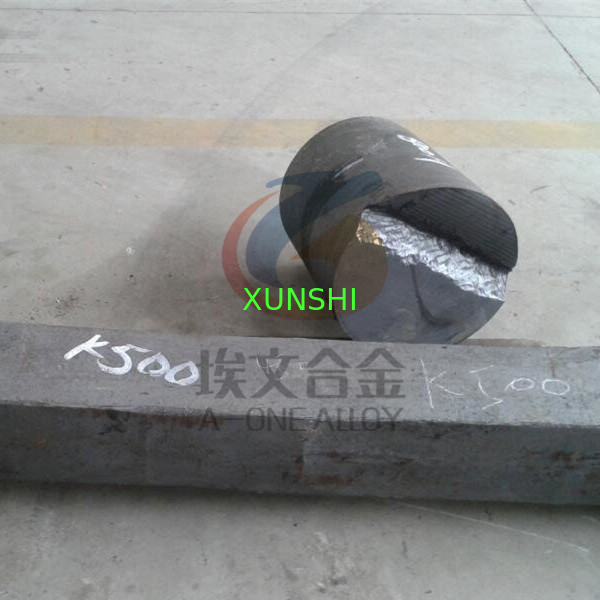

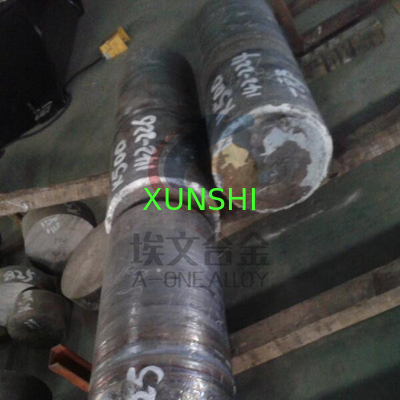

Plate, strip, bar, wire, pipe,  forging, flange, fastener

Delivery

Please contact A-one Alloy for  confirmation
