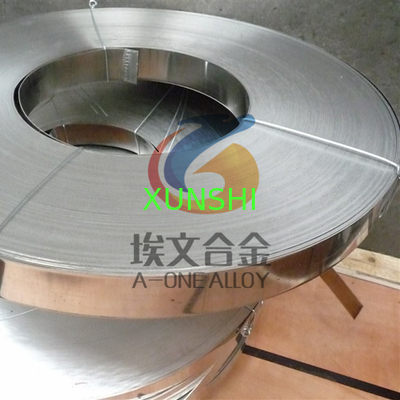

ASTM B388 thermostatic bimetals strip

ASTM B388 thermostatic bimetals strip

    • ASTM B388 thermostatic bimetals strip
    • ASTM B388 thermostatic bimetals strip
  • ASTM B388 thermostatic bimetals strip

    Product Details:

    Place of Origin: Suzhou, China
    Brand Name: AIWEN
    Certification: ISO
    Model Number: HAXY-PAS

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Price: Available per request
    Packaging Details: Wooden case or carton
    Delivery Time: 25-30 days
    Payment Terms: T/T
    Supply Ability: 5000kg per week
    Contact Now
    Detailed Product Description
    Application: Electrical Engineering Grade: 5J1070
    Ni (Min): 42 Resistance (μΩ.m): NA
    Ultimate Strength (≥ MPa): NA Elongation (≥ %): NA
    Type: Nickel Strip Powder Or Not: Not Powder

    Key Specifications/Special Features:

    • Thermostat metals in the form of sheet or strip are used for the temperature-sensitive elements of devices for controlling, compensating, or indicating temperature
    • Standards:
      • ASTM B388-00 standard specification for thermostat metal sheet and strip
      • DIN 1715 thermostat metals, technical delivery conditions
      • GB/T4461-2007 thermostat metal strip
    • Please contact Huaan International for more information about thermostat metal strip

    Brief description

    Thermostatic bimetal is a laminated composite material that usually consists of two firmly joined metals or metal alloys with different rates of thermal expansion. In case of temperature changes the strips, disks or parts change their shape in a defined way. If this change in shape is suppressed, a setting force is obtained which can be used for a mechanical displacement. By combining it with cladding and intermediate layers certain properties such as electrical resistivity, corrosion resistance etc. can be deliberately influenced.

    Applications

    Thermostatic bimetals are established in a wide range of applications other than microelectronics. They are used to control or limit temperature-dependent variables by means of a relatively simple design. Their easy handling as well as their high reliability and low costs are the decisive advantages for their application in:

    Electrical engineering

    • Protective motor switches
    • Automatic circuit breakers
    • Automatic time switches
    • Transformer safety switches
    • Automatic staircase light switches
    • Fluorescent lamp starters
    • Control devices for irons
    • Control devices for hot plates
    • Control devices for toasters
    • Control devices for ovens
    • Thermostats for thermal storage heating stoves
    • Inductive coil protections
    • Door locking systems

    Automotive industry

    • Cigarette lighters
    • Gasoline level indicators
    • Cooling water controllers (fan control)
    • Automatic starters
    • Seat heating
    • Mirror heating
    • Brake-power controllers

    Measurement technology

    • Temperature compensation
    • Temperature recorders
    • Thermometers
    • Clock and timer units

    Heat technology

    • Heating controllers
    • Steam traps
    • Exhaust gas valves
    • Fire detectors
    • Hot-water mixers
    • Stove regulators
    • Flame protection of gas burners
